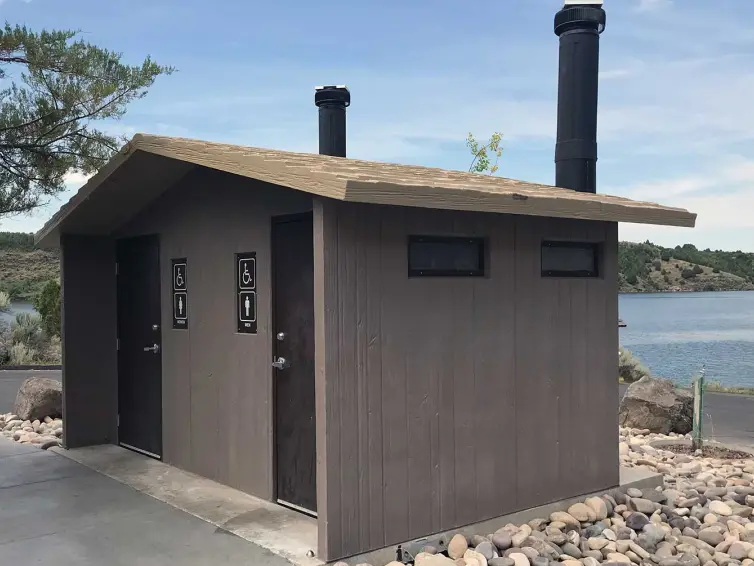

The Tioga Special is manufactured with steel-reinforced precast concrete and available in a variety of textures and colors to complement existing architecture. The structures are simple to install, easy to maintain, and vandal resistant.
The 11’ 11” x 14’ 4” Tioga has two single-user waterless restrooms and includes two ADA toilet risers with seats, ADA grab bars, two waste clean out hatches, and two 1,000-gallon concrete waste vaults.
Key Benefits
- Simple to Install: Minimal site preparation needed and can typically be in use on the day of installation.
- Easy to Maintain: The all-concrete construction will withstand rot and corrosion and allows for easy cleaning and lower operational costs.
- Vandal Resistant: Interiors are designed to resist abusive wear and maximize the structure’s service life.
Tioga Floorplan
Drawing for reference only.
Standard Features
The Tioga standard features are listed below. Also available are a variety of added cost options available to suit your particular needs. Contact us for more information.
Simulated barnwood texture walls with simulated cedar shake texture roof.

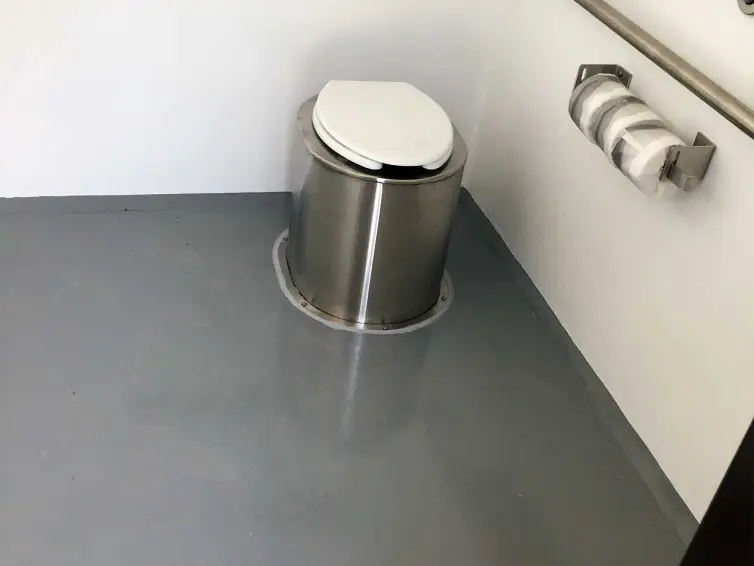

White plastic toilet risers with lids.
Stainless steel grab bars and ADA-compliant signage with Braille.
Toilet paper holders, coat hooks, and door stops.
Polyethylene lined concrete vault.
Resources and Specifications
- Tioga Drawings247.34 KB
- Tioga with Chase Drawings267.01 KB
- Double Vault Stub Up Drawing109.29 KB
- Double Vault Placement Diagram515.81 KB
- Tioga Specifications199.67 KB
- Tioga with Chase Specifications196.49 KB
- Tioga Installation247.90 KB
- CXT Vault Maintenance Manual235.29 KB
- CXT Building Truck Configuration3 (Stepdeck)537.93 KB
Gallery
Ordering and More Information
Learn more about this product, complete our short contact form to connect with our expert team.
Contact L.B. Foster Regional RepresentativesDelivered Throughout the United States and Canada
Our three plants, located in Idaho, Texas, and West Virginia, have ISO 9001:2015 and PCI certications. Our concrete buildings are delivered complete and ready to use throughout the United States and Canada. Contact your regional sales representative to discuss your project and discover how we can meet your project needs.
